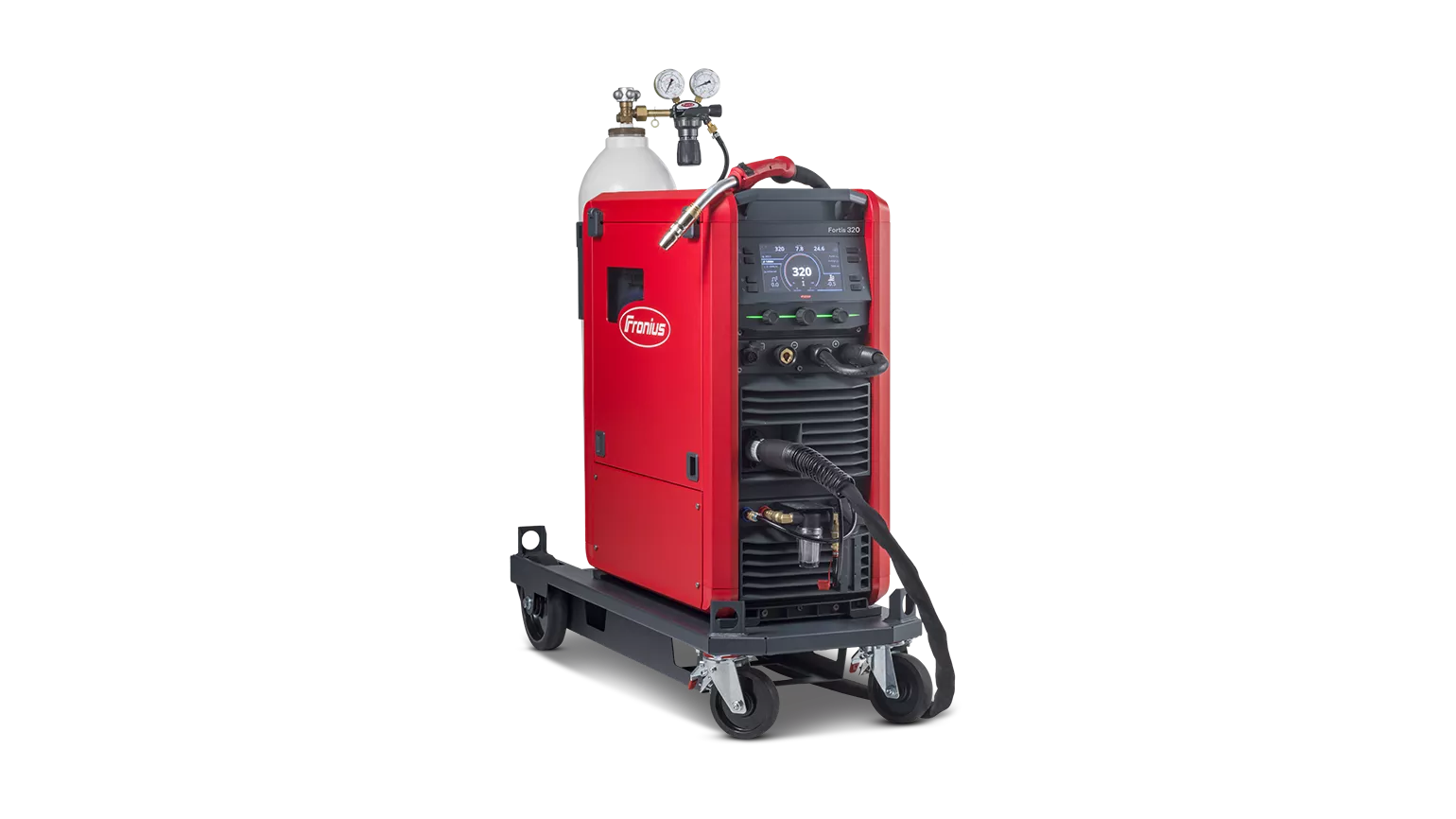

Fortis

Please choose your desired product.

Technical Data

Welding current min.	3 A
Welding current max.	320 A
Number of phases	3
Welding current / Duty cycle [10min/40°C]	320 A / 40 %
Welding current / Duty cycle [10min/40°C]	280 A / 60 %
Welding current / Duty cycle [10min/40°C]	240 A / 100 %
Wire feed speed min.	1 m/min
Wire feed speed max.	25 m/min
Dimension / length	681 mm
Dimension / width	368 mm
Dimension / height	763 mm
Weight	41,65 kg
Degree of protection	IP23

Current firmware and software updates for Fortis

The trial license allows you to test all welding packages and options for some arc hours.

1 / 2

Fortis Split

Fortis Compact

	Features	Fortis 270 C/G	Fortis 320 C/G	Fortis 320 C/GW	Fortis 320 /GW	Fortis 400 C/GW	Fortis 400 / GW	Fortis 500 C/GW	Fortis 500 /GW
System design	Compact	x	x	x	-	x	-	x	-
	External wirefeeder	-	-	-	x	-	x	-	x
	Gas-cooled	x	x	x	x	x	x	x	x
	Water-cooled	-	-
Mains voltage variant	400 V	x	x	x	x	x	x	x	x
	XT 200–600V	x	x	x	x	x	x	x	x
	600 V	-	-	-	-	-	x	-	x
Single-phase operation (XT variants only)	Up to 240 A	x	-	-	-	-	-	-	-
	Up to 270 A	-	x	x	x	-	-	-	-
	Up to 320 A	-	-	-	-	x	x	x	x
Generator-compatible	XT variants only	x	x	x	x	x	x	x	x
Multiprocess	TIG	x	x	x	-	optional	-	optional	-
	MMA	x	x	x	-	optional	-	optional	-
	CEL (XT variant)	x	x	x	x	x	x	x	x
Connectivity	Bluetooth	x	x	x	x	x	x	x	x
	WiFi	x	x	x	x	x	x	x	x
	NFC	optional
	Ethernet	optional
Data management	WeldCube Air WeldCube Premium	optional
	WeldCube Navigator	optional
	SmartManager	x	x	x	x	x	x	x	x
Options	Duo	-	-	x	-	x	-	x	-
	Wired remote control	x	x	x	x	x	x	x	x
	Wireless remote control	x	x	x	x	x	x	x	x
	Toolbox	-	-	x	x	x	x	x	x
	Organizer	x	x	x	x	x	x	x	x
	Flow Sensor	-	-	x	x	x	x	x	x
	Welding torch holder	x	x	x	x	x	x	x	x
	AI IO	x	x	x	x*	x**	x*	x**	x*

* TMC option required

** TMC or MP option required
